CAD
INSTANTANEOUS AND FUNCTION RELAYS / CAD
 CAD  rear wiring socket with clips ERDL2/CArear wiring socket / PCB mounting ERC2/CAfront wiring socket / screw terminals EVB2/CA |
DESCRIPTION  |
|
|
Latching relay with magnetic hold.
Pluggable on socket with a withdrawal clasp and square guide pins which can act as a key to ensure that the correct relay is used at the correct voltage (see our withdrawal guide in the technical support pages of this site) Pluggable on the following sockets : EVB2/CA, ERC2/CA, ERDL2/CA. |
| Dimensions | Connection | ||
 |
 |
| OPERATION PRINCIPLE |
|
|
|
 |
TECHNICAL FEATURES |
|
| Function | latching with magnetic hold | |
| Presentation | under cover | |
| Connection | on front or rear wiring socket | |
| Number of mechanical operations | 35.000.000 | |
| Operating temperature | - 5°C to + 40°C | |
| Storage temperature | - 40°C to + 70°C | |
| Climatic protection | optional reinforced climatic protection | |
| Shock voltage | 5 KV (wave 1,2/50 µs) | |
| Dielectric strength | 2500 V eff | |
| Insulation resistance | NFC 45-202 : C500 - VDE0110 : C380 | |
| Weight | 200 g. | |
| Protection level | IP 40 (according to NFC 20-010) | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 12 V | 12 V | ||
| Min. nominal voltage AC | 220 V | 230 V | ||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | 10 VA +/- 20% | 5,5 VA +/- 20% | ||
| CONTACTS |
||
| Number of contacts | 2 | |
| Max. load current | 8 A per contact | |
| Low power switching | 0,1 VA with min voltage 1 V and/or I min 1 mA | |
| Response time | DC < 9 ms - AC < 24 ms | |
|
CONTACTS RATING |
|||||||||||
|
||||||||||||
| DIRECT CURRENT | ||||||||||||
|
||||||||||||
|
||||||||||||
| ALTERNATIVE CURRENT | ||||||||||||
|
||||||||||||
| VERSIONS |
|
|
. CAD relay with reinforced climatic protection
. CAD relay with 3 CO contacts . CAD relay with control by the - Homologations & conformities : * CEI 255-1-00 * NFC 45-350 |
CSP
INSTANTANEOUS AND FUNCTION RELAYS CSP
| DESCRIPTION |
|
|
Impulse relay with fixed duration - 2 CO contacts - 6 A.
CSP relay is equipped in its standard version of : a locking system with elastic clips on the basis and clasps on the cover, two hexagonal withdrawal clasps permitting up to 36 possibilities (voltage, function) and a removable label-holder on front face. Pluggable on the following sockets : SVB, SPVB, SVDL, SPVDL, SRDL 4,8 and SRC. |
| Dimensions | Connection | ||
 |
 |
| OPERATION PRINCIPLE |
|
| Functions : * ET : impulse on voltage application * MT : impulse on voltage lack. duration of impulse contact : 0,15 to 1 s Interval between 2 operations : > 1 s Contacts rating in DC : * resistive load 0,5 A - 48 V : > 10.000.000 operations * resistive load 0,5 A - 125 V : > 5.000.000 operations * inductive load L/R 40 ms - 3A x 24 V or 1 A x 48 V or 4 A x 125 V : > 300.000 operations. Contacts rating in AC : * resistive load I = 6 A - 220 V : 500.000 operations * inductive load I = 4A - cos phi 0,5 - 220 V > 500.000 operations. |
|
TECHNICAL FEATURES |
|
| Function | impulse (ET - MT) | |
| Presentation | under cover | |
| Connection | on front or rear wiring socket | |
| Number of mechanical operations | 20.000.000 | |
| Operating temperature | - 10 to + 55°C | |
| Storage temperature | - 40 to + 85°C | |
| Shock voltage | 3 KV (wave 1,2/50 µs) | |
| Dielectric strength | 2200 to 2500 V eff 50 Hz | |
| Insulation resistance | C250 V (according to NFC 45-202 & VDE 0110) | |
| Weight | 180 g. | |
| Protection level | IP 40 (according to NFC 20-010) | |
| Resistance to mechanical shocks | severity 30 A (NFC 20-610 & CEI 682-25/Test Ea) | |
| Resistance to vibrations | frequency range 10-55 Hz, 0,35 mm crest | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 12 V | 12 V | ||
| Min. nominal voltage AC | 220 V | 230 V | ||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | ET : 2,5 W - MT : 0,5 W | |||
| CONTACTS |
||
| Number of contacts | 2 | |
| Max. load current | 6 A per contact | |
| Low power switching | 0,1 W with min voltage 6 V or I min 10 mA | |
| Response time | ET < 20 ms - MT < 15 ms | |
| VERSIONS |
|
|
. CSP relay with specific voltages
. CSP relay with different impulse time. Homologations & conformities : NFC 45-250 CEI 255-1-00 |
Flashing relays 2 contacts / CAK
Flashing relays 2 contacts / CAK
|
CAK
|
| DESCRIPTION |
|
Flashing relay with fixed rythm - 2 CO contacts - 5 A.
Pluggable on socket with a withdrawal clasp and square guide pins which can act as a key to ensure that the correct relay is used at the correct voltage (see our withdrawal guide inthe technical support pages of this site). Pluggable on the following sockets : EVB2/CA, ERC2/CA and ERDL2/CA. |
| Dimensions | Connection | |
 |
 |
| OPERATION PRINCIPLE |
|
* rythm : fixed
* flashing frequency : 60 to 120 beats per minute at nominal voltage (possible decrease of the frequency by connecting an external capacitor between terminals +14 and -15). This relay is specifically designed for the switching of incandescent lamps CONTACTS RATING : Voltage Lamp Contacts rating 125 V AC/DC 75 W-0,6 A 8 millions operations " " 100 W-0,8 A 6 " " " " 150 W-1,2 A 4 " " 220 " 75 W-0.34 A 8 " " " " 200 W-0,9 A 2 " " |
| TECHNICAL FEATURES | |
| Function | flashing |
| Presentation | under cover |
| Connection | on front or rear wiring socket |
| Number of mechanical operations | 35.000.000 |
| Operating temperature | - 5°C to + 40°C |
| Storage temperature | - 40°C to + 70°C |
| Climatic protection | optional reinforced climatic protection |
| Shock voltage | 5 KV (wave 1,2/50 µs) |
| Dielectric strength | 2200 V eff |
| Insulation resistance | NFC 45-202 : C500 - VDE0110 : C380 |
| Weight | 200 g. |
| Protection level | IP 40 (according to NFC 20-010) |
| Resistance to mechanical shocks | severity 50 A (NFC 20-608 & CEI 68-2-27) |
| Resistance to vibrations | 0,35 mm / 10-55 Hz |
| COIL DATA | |||
| Direct current | Alternative current | ||
| Min. nominal voltage DC | 12 V | 12 V | |
| Min. nominal voltage AC | 230 V | 380 V - 50/60 Hz | |
| Operating range | -20/+10% of nominal voltage | ||
| Power requirement | 2,5 W (7 W as a peak) | ||
| CONTACTS | |
| Number of contacts | 2 |
| Max. load current | 5 A per contact |
| Low power switching | 40 W |
| VERSIONS |
|
. CAK relay with reinforced climatic protection
. CAK relay with more rapid rythm . CAK relay with high contacts rating. Homologations & conformities : * CEI 255-1-00 * NFC 45-250 |
Flashing relays 2 contacts / CAP
INSTANTANEOUS AND FUNCTION RELAYS
Flashing relays 2 contacts / CAP
CAP rear wiring socket with clips ERDL1/CArear wiring socket / PCB mounting ERC1/CAfront wiring socket / screw terminals EVB1/CA |
| DESCRIPTION |
|
|
Impulse relay with fixed duration. 1 impulse contact and 2 CO contacts.
Pluggable on socket with a withdrawal clasp and square guide pins which can act as a key to ensure that the correct relay is used at the correct voltage (see our withdrawal guide in the technical support pages of this site) Pluggable on the following sockets : EVB1/CA, ERC1CA or ERDL1CA. |
| Dimensions | Connection | ||
 |
 |
| OPERATION PRINCIPLE |
|
|
Impulse relay with fixed duration :
* interval between 2 operations >= 1 s * duration of the impulse contact >= 200 ms |
|
TECHNICAL FEATURES |
|
| Function | Impulse (ET - MT) | |
| Presentation | under cover | |
| Connection | on front or rear wiring socket | |
| Number of mechanical operations | 35.000.000 | |
| Operating temperature | - 5°C to + 40°C | |
| Storage temperature | - 40°C to + 70°C | |
| Climatic protection | optional reinforced climatic protection | |
| Shock voltage | 3 KV (wave 1,2/50 µs) | |
| Dielectric strength | 2200 V eff | |
| Insulation resistance | NFC 45-202 & VDE0110 : C250 | |
| Weight | 200 g. | |
| Protection level | IP 40 (according to NFC 20-010) | |
| Resistance to mechanical shocks | severity 50 A (CEI 68-2-27) | |
| Resistance to vibrations | 0.35 mm / 10-55Hz (CEI 38-2-6) | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 12 V | 12 V | ||
| Min. nominal voltage AC | 220 V | 230 V 50-60 Hz | ||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | 2,2 W +/- 20% | 3 VA +/- 20% | ||
| CONTACTS |
||
| Number of contacts | 1 | |
| Max. load current | 8 A inst. / 4 A impulse | |
| Low power switching | 0,1 VA with min voltage 1 V and/or I min 1 mA | |
| Response time | DC < 9 ms - AC < 24 ms | |
|
CONTACTS RATING |
|||||||||||
|
||||||||||||
| DIRECT CURRENT | ||||||||||||
|
||||||||||||
|
||||||||||||
| ALTERNATIVE CURRENT | ||||||||||||
|
||||||||||||
| VERSIONS |
|
|
* CAP relay with reinforced climatic protection
* CAP relay with 3 instantaneous contacts and 1 impulse contact Homologations & conformities : * CEI 255-1-00 * NFC 45-250 |
Flashing relays 2 contacts / CAQ
INSTANTANEOUS AND FUNCTION RELAYS
Flashing relays 2 contacts / CAQ
CAQ rear wiring socket with clips ERDL2/CArear wiring socket / PCB mounting ERC2/CAfront wiring socket / screw terminals EVB2/CA |
| DESCRIPTION |
|
|
Instantaneous relay with rapid memory.
Pluggable on socket with a withdrawal clasp and square guide pins which can act as a key to ensure that the correct relay is used at the correct voltage (see our withdrawal guide in the technical support pages of this site) Pluggable on the following sockets : EVB2/CA, ERC2/CA or ERDL2/CA. |
| Dimensions | ||
|

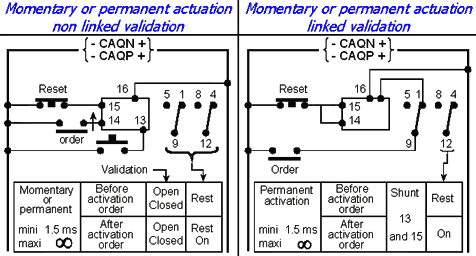

| OPERATION PRINCIPLE |
|
| This relay is a rapid memory which acts when it receives an impulse with duration > 0.5 ms (terminal 14). This information is re-sent (tipping of the two CO contacts) when validated by action on terminal 13 (validation). This information is directly re-sent il terminals 13 and 15 are linked. Return to rest state is made by cutting-off terminal 15 (reset). See the operation diagram hereafter |
|
TECHNICAL FEATURES |
|
| Function | instantaneous | |
| Presentation | under cover | |
| Connection | on front or rear wiring socket | |
| Number of mechanical operations | 35.000.000 | |
| Operating temperature | - 5°C to + 40°C | |
| Storage temperature | - 40°C to + 70°C | |
| Climatic protection | optional reinforced climatic protection | |
| Shock voltage | 3 KV (wave 1,2/50 µs) | |
| Dielectric strength | 2200 V eff | |
| Weight | 200 g. | |
| Protection level | IP 40 (according to NFC 20-010) | |
| Resistance to mechanical shocks | severity 50 A (according to NFC 20-608) | |
| Resistance to vibrations | 0,35 mm / 10-55 Hz (according to NFC 20-616) | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 12 V | |||
| Min. nominal voltage AC | 220 V | |||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | 4 W permanently - 0,5 W control impulse | |||
| CONTACTS |
||
| Number of contacts | 2 | |
| Max. load current | 8 A per contact | |
| Low power switching | 0,1 VA with min voltage 1 V and/or I min 1 mA | |
|
CONTACTS RATING |
|||||||||||
|
||||||||||||
| DIRECT CURRENT | ||||||||||||
|
||||||||||||
|
||||||||||||
| ALTERNATIVE CURRENT | ||||||||||||
|
||||||||||||
| OPERATION DIAGRAM |
|
| see detailed operation diagram here above | |
|
|
 |
|
| VERSIONS |
|
|
. CAQ relay with reinforced climatic protection
. CAQP relay with control by positive polarity . CAQN relay with control by negative polarity . CAQ relay with impulse < 0,5 ms |
Flashing relays 2 contacts / CSM
.jpg)
INSTANTANEOUS AND FUNCTION RELAYS
/ CSM
| DESCRIPTION |
|
|
Multifunction, multi-voltages, multirange timer relay - 2 timed contacts/2 instantaneous contacts - 3 A.
Pluggable on the following sockets : SVB, SPVB, SRC, SVDL, SPVDL and SRDL 4.8. |
| Dimensions | Connection | ||
 |
 |
| OPERATION PRINCIPLE |
|
| FUNCTIONS : * ET : timed on voltage application * MT : timed on voltage lack * PET : impulse on voltage application * PMT : impulse on voltage lack * K : flashing * T : teleruptor. TIMING RANGE : 0,1 s to 1 h. "function" and "range" selection made by switches on front face and timing adjustment by potentiometer. Green and red LEDs indicate voltage and function statement. CSM relay conforms with EC standard. See operation diagram hereafter. |
| PLAN |
|
|
|
 |
|
|
TECHNICAL FEATURES |
|
| Function | timer (ET, MT, PET, PMT, K & T) | |
| Presentation | under cover | |
| Connection | pluggable on front or rear cover | |
| Number of mechanical operations | 5.000.000 | |
| Operating temperature | - 10 to + 55°C | |
| Storage temperature | - 25 to + 70°C | |
| Shock voltage | 5 KV (wave 1,2/50 µs) | |
| Dielectric strength | 1000 to 2200 V Eff | |
| Protection level | IP20 | |
| Resistance to mechanical shocks | 50 g / 11 ms / sinusoïde | |
| Resistance to vibrations | 0.35 mm / 10-55 Hz / semi-sinusoïde | |
| Operate time | recycling by control cut-off : 10 ms/DC-20 ms/AC | |
| Release time | recycling by voltage cut-off >= 30 ms | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 19 V | 19 V | ||
| Min. nominal voltage AC | 250 V | 250 V - 50 or 60 Hz | ||
| Operating range | -20% +10% of nominal voltage | |||
| Power requirement | 3 VA | |||
| CONTACTS |
||
| Number of contacts | 2 | |
| Max. load current | 3 A | |
| Low power switching | 5 V - 10 mA | |
|
CONTACTS RATING |
|||||
|
||||||
|
||||||
| ALTERNATIVE CURRENT | ||||||
|
||||||
Flashing relays 2 contacts / EP371
INSTANTANEOUS AND FUNCTION RELAYS
Flashing relays 2 contacts / EP371
EP371 rear wiring socket solder type/clips EX371rear wiring socket / PCB mounting EXC371front wiring socket with clips EVP371-DLfront wiring socket / screw terminals EVP371 |
| DESCRIPTION |
|
|
Instantaneous industrial relay for intensive use. 3 CO contacts - 7 A.
Pluggable on front wiring sockets (EVP371), on rear wiring sockets (EX371) and socket for PCB mounting (EXC371). |
| Dimensions | Connection | ||
 |
 |
|
TECHNICAL FEATURES |
|
| Function | Instantaneous | |
| Presentation | under cover | |
| Connection | on front or rear wiring socket | |
| Number of mechanical operations | 30.000.000 | |
| Operating temperature | - 5°C to + 40°C | |
| Storage temperature | - 40°C to + 70°C | |
| Climatic protection | optional reinforced climatic protection | |
| Shock voltage | 3 Kv (wave 1,2/50 microseconds) | |
| Dielectric strength | 2200 V eff-50 Hz | |
| Insulation resistance | > 20.000 MOhms | |
| Weight | 83 g. | |
| Protection level | IP40 (according to NFC 20-010) | |
| Resistance to mechanical shocks | severity 50 A (according to NFC 20-608) | |
| Resistance to vibrations | 0,35 mm/10-55 Hz (according to NFC20-616) | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 6 V | 6 V 50 Hz | ||
| Min. nominal voltage AC | 220 V | 380 V 50 Hz | ||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | 2,2W | 4,5 VA | 2,7 VA | |
| CONTACTS |
||
| Number of contacts | 3 | |
| Max. load current | 7 A per contact | |
| Low power switching | 0,1 VA with min voltage 1 V and/or I min 1 mA | |
| Response time | < 20 ms | |
|
CONTACTS RATING |
|||||
|
||||||
| DIRECT CURRENT | ||||||
|
||||||
|
||||||
| ALTERNATIVE CURRENT | ||||||
|
||||||
| VERSIONS |
|
|
. EP371 relay with reinforced climatic protection
. EP371 relay with reduced power (0,5 W in DC ou 1 VA in AC) . EP371 relay with specific characteristics (voltage, frequency) . EP371J relay with mechanical indicator . EP371 relay with unlinked contacts . EP371 relay with marine or railways specifications . EP371 relay with tungstene contacts . EIP371 intensity relay Homologations & conformities : * CEI 255-1-00 * NFC 45-250 |
Flashing relays 2 contacts / EPK
INSTANTANEOUS AND FUNCTION RELAYS
Flashing relays 2 contacts / EPK
EPK rear wiring socket / PCB mounting EXCL5front wiring socket with clips EVPL5-DLfront wiring socket / screw terminals EVPL5rear wiring socket solder type/clips EXL5 |
| DESCRIPTION |
|
|
Flashing relay with fixed rythm - 2 CO contacts - 5 A.
Pluggable on socket with a withdrawal clasp and two guide pins. Pluggable on the following sockets : EVPL5, EXCL5, or EXL5. |
| Dimensions | Connection | ||
 |
 |
| OPERATION PRINCIPLE |
|
|
* rythm : fixed
* flashing frequency : 60 to 120 beats per minute at nominal voltage (possible reduction of the frequency connecting an external capacitor between terminals B1 and B3). This relay is specifically designed for the switching of incandescent lamps. CONTACTS RATING : Voltage Lamp Contacts rating 125 V AC/DC 75 W-0,6 A 8 million operations " " 100 W-0,8 A 6 " " " " 150 W-1,2 A 4 " " 220 " 75 W-0.34 A 8 " " " " 200 W-0,9 A 2 " " |
|
TECHNICAL FEATURES |
|
| Function | flashing | |
| Presentation | under cover | |
| Connection | on front or rear wiring socket | |
| Number of mechanical operations | 35.000.000 | |
| Operating temperature | - 5°C to + 40°C | |
| Storage temperature | - 40°C to + 70°C | |
| Climatic protection | optional reinforced climatic protection | |
| Shock voltage | 3 KV (wave 1,2/50 µs) | |
| Dielectric strength | 2200 V eff 50 Hz | |
| Insulation resistance | > 20.000 MOhms | |
| Weight | 180 g. | |
| Protection level | IP 40 (according to NFC 20-010) | |
| Resistance to mechanical shocks | severity 50 A (NFC 20-608 & CEI 68-2-27) | |
| Resistance to vibrations | 0,35 mm / 10-55 Hz | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 12 V | 12 V | ||
| Min. nominal voltage AC | 230 V | 380 V - 50/60 Hz | ||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | 2,5 W (7 W as a peak) | |||
| CONTACTS |
||
| Number of contacts | 2 | |
| Contacts material | tungstene | |
| Max. load current | 5 A per contact | |
| Low power switching | 40 W | |
| VERSIONS |
|
|
. EPK relay with reinforced climatic protection
. EPK with specific contacts . EPK relay with specific characteristics (voltage, rythm, ajustable period). Homologations & conformities : * CEI 255-1-00 * NFC 45-250 |
Flashing relays 2 contacts / EPP
INSTANTANEOUS AND FUNCTION RELAYS
Flashing relays 2 contacts / EPP
EPP rear wiring socket / PCB mounting EXCL5front wiring socket with clips EVPL5-DLfront wiring socket / screw terminals EVPL5rear wiring socket solder type/clips EXL5 |
| DESCRIPTION |
|
|
Impulse relay with fixed duration - 4 CO contacts and 1 impulse contact.
Relay pluggable on socket including a withdrawal clasp and two guide pins. Pluggable on the following sockets : EVPL5, EXCL5, or )EXL5. |
| Dimensions | Connection | ||
|
 |
| OPERATION PRINCIPLE |
|
|
Impulse relay with fixed duration.
Functions : ET : impulse on voltage application MT : impulse on voltage lack |
|
TECHNICAL FEATURES |
|
| Function | Impulse (ET - MT) | |
| Presentation | under cover | |
| Connection | on front or rear wiring socket | |
| Number of mechanical operations | 30.000.000 | |
| Operating temperature | - 5°C to + 40°C | |
| Storage temperature | - 40°C to + 70°C | |
| Climatic protection | optional reinforced climatic protection | |
| Shock voltage | 3 KV (wave 1,2/50 µs) | |
| Dielectric strength | 2200 V eff 50 Hz | |
| Insulation resistance | > 20.000 MOhms | |
| Weight | 180 g. | |
| Protection level | IP 40 (according to NFC 20-010) | |
| Resistance to mechanical shocks | severity 50 A (NFC 20-608 & CEI 68-2-27) | |
| Resistance to vibrations | 0,35 mm / 10-55 Hz | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 12 V | 12 V | ||
| Min. nominal voltage AC | 230 V | 380 V - 50/60 Hz | ||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | 2,7 W (12-24-48 V) | 3,7 VA (125-220-380 V) | ||
| CONTACTS |
||
| Number of contacts | 1 | |
| Max. load current | 5 A inst / 2 A impulse | |
| Low power switching | 0,1 VA with min voltage 1 V or I min 1 mA | |
| Response time | DC > 21 ms - AC < 17 ms | |
|
CONTACTS RATING |
|||||||||||
|
||||||||||||
| DIRECT CURRENT | ||||||||||||
|
||||||||||||
|
||||||||||||
| ALTERNATIVE CURRENT | ||||||||||||
|
||||||||||||
| VERSIONS |
|
|
. EPP relay with reinforced climatic protection
. EPP with specific characteristics (voltage, frequency) Homologations & conformities : * CEI 255-1-00 * NFC 45-250 |
Flashing relays 2 contacts / EPRA
INSTANTANEOUS AND FUNCTION RELAYS
Flashing relays 2 contacts / EPRA
EPRA rear wiring socket solder type/clips EXL5rear wiring socket / PCB mounting EXCL5front wiring socket with clips EVPL5-DLfront wiring socket / screw terminals EVPL5 |
| DESCRIPTION |
|
|
Latching relay with magnetic hold function and electric unlocking - 4 CO contacts - 7 A.
Relay pluggable on sockets including a withdrawal clasp and two guide pins. Pluggable on the following sockets : EVPL5, EVPL5-DL, EXL5, or EXCL5. |
| Dimensions | Connection | ||
 |
 |
|
TECHNICAL FEATURES |
|
| Function | latching with magnetic hold function | |
| Presentation | under cover | |
| Connection | on front or rear wiring socket | |
| Number of mechanical operations | 20.000.000 | |
| Operating temperature | - 5°C to + 40°C | |
| Storage temperature | - 40°C to + 70°C | |
| Climatic protection | optional reinforced climatic protection | |
| Shock voltage | 3 kV (wave 1,2/50 µs) | |
| Dielectric strength | 2200 V eff | |
| Insulation resistance | > 20.000 MOhms | |
| Weight | 40 g. | |
| Protection level | IP40 (according to NFC 20-010) | |
| Resistance to mechanical shocks | severity 50 A (NFC 20-608 & CEI 68-2-27) | |
| Resistance to vibrations | 0,35 mm / 10-55 Hz (NFC 20-616 & CEI 68-2- | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 12 V | 12 V | ||
| Min. nominal voltage AC | 230 V | 380 V 50-60 Hz | ||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | operate : 6,5 W - release : 0,7 W | |||
| CONTACTS |
||
| Number of contacts | 4 | |
| Max. load current | 7 A | |
| Low power switching | 0,1 VA with min voltage 1 V or I min 1 mA | |
| Response time | DC : 3 to 8,5 ms - AC : 3 to 23 ms | |
|
CONTACTS RATING |
|||||
|
||||||
| DIRECT CURRENT | ||||||
|
||||||
|
||||||
| ALTERNATIVE CURRENT | ||||||
|
||||||
| VERSIONS |
|
|
. EPRA relay with reinforced climatic protection
. EPRA relay with specific characteristics (voltage, current, frequency). Homologations & conformities : * CEI 255-1-00 * NFC 45-250 |
Flashing relays 2 contacts / EPRM
INSTANTANEOUS AND FUNCTION RELAYS
Flashing relays 2 contacts / EPRM
EPRM rear wiring socket solder type/clips EXL5rear wiring socket / PCB mounting EXCL5front wiring socket with clips EVPL5-DLfront wiring socket / screw terminals EVPL5 |
| DESCRIPTION |
|
|
Latching with magnetic hold function and manual/mechanical unlocking - 4 CO contacts - 7 A.
Relay pluggable on socket including a withdrawal clasp and two guide pins. Pluggable on the following sockets : EVPL5, EVPL5-DL, EXL5, or EXCL5. |
| Dimensions | Connection | ||
|
|
|
TECHNICAL FEATURES |
|
| Function | latching with magnetic hold | |
| Presentation | under cover | |
| Connection | on front or rear wiring cover | |
| Number of mechanical operations | 20.000.000 | |
| Operating temperature | - 5°C to + 40°C | |
| Storage temperature | - 40°C to + 70°C | |
| Climatic protection | optional reinforced climatic protection | |
| Shock voltage | 3 kV (wave 1,2/50 µs) | |
| Dielectric strength | 2200 V eff | |
| Insulation resistance | > 20.000 MOhms | |
| Weight | 40 g. | |
| Protection level | IP40 (according to NFC 20-010) | |
| Resistance to mechanical shocks | severity 50 A (NFC 20-608 & CEI 68-2-27) | |
| Resistance to vibrations | 0,35 mm / 10-55 Hz (NFC 20-616 & CEI 68-2-6) | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 12 V | 12 V | ||
| Min. nominal voltage AC | 230 V | 380 V 50-60 Hz | ||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | operate : 3 W - mechanical manual release | |||
| CONTACTS |
||
| Number of contacts | 4 | |
| Max. load current | 7 A | |
| Low power switching | 0,1 VA with min voltage 1 V or I min 1 mA | |
| Response time | DC : 3 to 8,5 ms - AC : 3 to 23 ms | |
|
CONTACTS RATING |
|||||
|
||||||
| DIRECT CURRENT | ||||||
|
||||||
|
||||||
| ALTERNATIVE CURRENT | ||||||
|
||||||
| VERSIONS |
GAP
INSTANTANEOUS AND FUNCTION RELAYS / GAP
| DESCRIPTION |
|
|
Impulse relay - 4 CO contacts - 3 A.
Pluggable on socket with possible withdrawal clasp. Pins at the standard pitch of 2.54 mm. Possibility of polarizatio by mounting a male withdrawal clasp on the relay and a female withdrawal clasp on the socket. GAP relay is pluggable on the following sockets : EVB/GE, 9877, EVC/GE, 9876, ER/GE 2.8, or ER/GE. |
| Dimensions | Connection | ||
 |
 |
| OPERATION PRINCIPLE |
|
|
Functions :
* ET : impulse on voltage application * MT : impulse on voltage lack Duration of impulse contact : 0,15 to 1 s Interval between 2 operations : > 1 s |
|
TECHNICAL FEATURES |
|
| Function | impulse (ET - MT) | |
| Presentation | under cover | |
| Connection | on front or rear wiring socket | |
| Number of mechanical operations | 30.000.000 | |
| Operating temperature | - 5°C to + 40°C | |
| Storage temperature | - 40°C to + 70°C | |
| Climatic protection | optional reinforced climatic protection | |
| Dielectric strength | 2000 V eff-50 Hz | |
| Insulation resistance | NFC 45-202 : C 250 V | |
| Weight | 60 g. | |
| Protection level | IP40 (according to NFC 20-010) | |
| Resistance to mechanical shocks | severity 50 A (NFC 20-608) | |
| Resistance to vibrations | frequency range : 10-55 Hz (NFC20-616) | |
| COIL DATA |
||||
| Direct current | Alternative current | |||
| Min. nominal voltage DC | 24 V | 24 V | ||
| Min. nominal voltage AC | 230 V | 230 V | ||
| Operating range | -20/+10% of nominal voltage | |||
| Power requirement | ET : 2 W - MT : 0,5 W | |||
| CONTACTS |
||
| Number of contacts | 4 | |
| Max. load current | 3 A | |
| Low power switching | 0,1 VA with min voltage 1 V and/or I min 1 mA | |
| Response time | < 14 ms | |
|
CONTACTS RATING |
|||||
|
||||||
| DIRECT CURRENT | ||||||
|
||||||
|
||||||
| ALTERNATIVE CURRENT | ||||||
|
||||||
| VERSIONS |
|
|
. GAP relay with reinforced climatic protection
. GAP relay with specific voltages. Homologations & conformities : NFC 45-250 CEI 255.1.00 |
MTI RELAYS MARKASINA A?T ?R?N GRUPLARI
ABOUT US
INSTANTANEOUS AND FUNCTION RELAYS
Latching relays
Low level relays
Security relays
SOCKETS
Timer relays
Voltage sensor relays
