Ronan - Digital Indicators

Ronan's X54-200 series is an industrial grade family of Loop-Powered Indicators. These units can be used for local indication in hazardous or harsh environments as well as in control room applications.

More Info Price

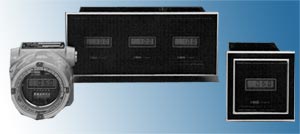

Ronan - Digital Indicators Model X54-201

Loop Powered Indicators Provide On Site Local or Control Room Display of Critical Process Variables

The X54-201 utilizes low power circuitry, similar to the X54-200 and X54-202, but will drop less than 1 Vdc in the current loop. These units can be factory calibrated to the customer's specifications or field scaled by the customer. Linear or Square Root extracting displays, zero, full scale and decimal point location are all field set with internal jumpers, switches and potentiometers. Available housings include NEMA type 7 and 4 rated explosion-proof (for Class I, Division 1, Groups B, C, D and weatherproof installations) or general purpose panel mount units for control room applications. The panel mount version can also be combined with Ronan Annunciators, Lamp Cabinets and Process Monitors in hybrid configurations. The NEMA type 7 configuration has also been Factory Mutual approved as Intrinsically Safe when used with the appropriate IS Barrier

Specifications:

Model X54-201

Inputs: 4-20 mA
Input Protection: Reverse polarity diode
Display: 3-1/2 digit LCD
Display Size: .35" liquid crystal
Zero Selection: -360 to +1300 digits
Span Selection: 100 to 1999 digits
Decimal Point: None to 0.000
Accuracy: Linear = +/- 0.1 % of span +/- 1 digit
    Square Root = +/- 0.3% of span
Operating Temperature: -20 to + 140°F
      (-30 to + 60°C)
Temperature Coefficient: (-10 to + 60°C)
   ZERO = +/- 0.01 % of span/°C
    +/- 0.01 % of elevated zero value/°C
   SPAN = +/- 0.015% of span/°C
Voltage Drop: <1.0 V
Weight: <3 Ibs (N4/7); < 1 lb (PM)

More Info Price

Ronan - Digital Indicators Models X54-200/X54-202

Ronan - Digital Indicators Models X54-200/X54-202

Loop Powered Indicators Provide On Site Local or Control Room Display of Critical Process Variables

The X54-200 and X54-202 Series utilize state of the art circuitry. Power consumption is less than 16 mW, with loop voltage drops of less than 4.5 Vdc for the X54-200 and 5.5 Vdc for the X54-202. These units are available with Linear or Square Root extracting display of the input current signal. The actual digital display range is factory set to the customer's required units of measurement. Range changes are accomplished in the field by ordering "RE-SCALING" kits from Ronan. Available housings include NEMA Type 7 and 4 rated explosion-proof (for Class I, Division 1, Groups B, C, D and weatherproof installations) or general purpose panel mount units for control room applications. The panel mount version can also be combined with Ronan Annunciators, Lamp Cabinets and Process Monitors in hybrid configurations.

Specifications:

Models X54-200/X54-202

Inputs: 4-20 or 10-50 mA
Input Protection: Reverse polarity diode and fuse
Display: X54-200 = 3-1/2 digit LCD
      X54-202 = 4-1/2 digit LCD
Display Size: .35" liquid crystal
Zero Selection: X54-200 = -1999 to 1899 digits
      X54-202 = -19999 to 19899 digits
Span Selection: X54-200 = 100 to 3898 digits
      X54-202 = 100 to 39898 digits
Decimal Point: X54-200 = none to 0.000
      X54-202 = none to 0.0000
Accuracy: Linear = +/- 0.1% of span +/- 1 digit
      Square Root = +/- 0.3% of span
Operating Temperature: -20 to 175° F (-29 to 79°C)
      Storage Temperature: -67 to 175° F (-55 to 79°C
Temperature Coefficient: (-10 to 60°C)
    ZERO = +/- 0.01% of span/°C
      +/- 0.01 % of elevated zero value/°C
    SPAN = +/- 0.015% of span/°C
Voltage Drop: X54-200 = <4.5 V
      X54-202 = <5.5 V
Weight: <3 lbs (N 4/7); < 1 lb (PM)
