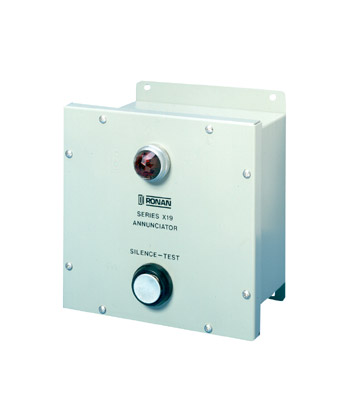

Ronan Single Point Annunciator X19
Ronan Single Point Annunciator X19
X19 Series Single Point Annunciator
These self-contained alarms provide complete annunciation capability for NEMA 4 or 12 Applications. Each alarm contains the necessary logic, light indicator, and pushbutton switch for single point monitoring of Normally Open or Normally Closed field contacts.
Complete logic circuitry provides standard "A" alarm sequence with flashing light and horn on alarm, steady light-silent horn after acknowledgement, and light out-horn silent when trouble contacts return to normal.
The isolated SPDT auxiliary contacts may be used with other alarm systems or as electrical interlocks.
Improved design allows easy field wiring and startup by use of a removable submodule. This submodule contains the NO/NC Field Contact Switch, the Lock/Non-Lock feature for momentary alarms, fuse holder, and the power Mizer Alarm Module. A single pushbutton switch is used for both silence and lamp test functions
More Info PriceRonan Solid State Annunciator X11SN
Ronan Solid State Annunciator X11SN
The X11 and X11SN multipoint systems feature alarm modules with on-board alarm logic for single, dual, tri, and quad windows, lit by two incandescent lamps or Light Emitting Diodes (LED) Arrays.
The alarm logic is designed to generate any of the ISA 18.1 alarm sequences and a large number of custom sequences. The logic is designed to meet IEEE 472 Surge Withstand Test and high noise immunity requirements.
On-board options, such as optoisolation for live AC or DC voltages, transistor inputs, time delays, selectable dual audible, ringback audible, short circuit proof lamp drivers, lamp dim, and dual colors are available.
Auxiliary function modules, such as auxiliary contact modules, may be integrated individually or in combination into the various systems
More Info PriceRonan Portable HydroStatic Tester X76CTM-P
Ronan Portable HydroStatic Tester X76CTM-P
The Ronan X76CTM-P is an accurate, portable leak measurement instrument designed to meet and exceed the requirement of new hydrostatic testing in service stations. The unit is lightweight and portable, capable of testing up to 8 different locations. It is configurable for different leak test time span requirements. It is provided with an integrated printer and a laptop interface making this hydrostatic tester the premier tester on the market
More Info PriceRonan Solid State Annunciator X12

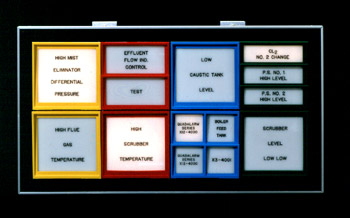

Ronan Solid State Annunciator X12
The X12 system provides for single point alarm logic modules driving TWO incandescant lamps or LED Arrays based window display from single to quad arrays per mechanical modules.
The alarm logic is designed to generate any of the ISA 18.1 alarm sequences and a large number of custom sequences. The logic is designed to meet IEEE 472 Surge Withstand Test and high noise immunity requirements.
On-board options, such as optoisolation for live AC or DC voltages, analog or transistor inputs, time delays, selectable dual audible, ringback audible, short circuit proof lamp drivers, lamp dim, and dual colors are available.
Auxiliary function modules, such as auxiliary contact modules, reflash modules, loss of motion detector and analog input modules may be integrated individually or in combination into the various systems
More Info PriceSplit Architecture.Annunciator X16

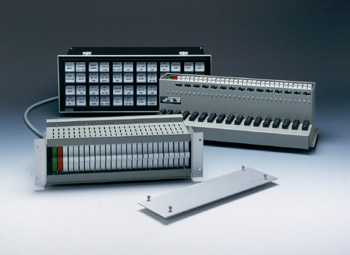

Ronan Split Architecture.Annunciator X16
The Visual Annunciator System architecture, configured where the electronic modules are remote from the window display, is ideally suited for large systems in power plants and process plant control rooms. The modular logic is housed in relay rack-mount or surface-mount chassis, and connected via multiconductor wiring to the lamp display. Connection to the display and the logic chassis may be made by means of individual wires to terminals; or via prefabricated cable assemblies with multipin connectors. The split architecture provides ease of maintenance with access to the electronics without interference with the control room operation
More Info PriceRonan MARKASINA A?T ?R?N GRUPLARI
