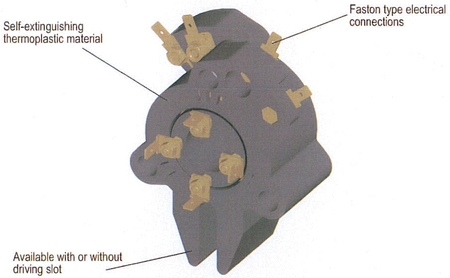

10A Slip ring collector
10A Slip ring collector
SPECIFICATIONS
Brass rings, copper-berillium brushes and copper buttons.
Ø 40 flange.
Further information available on the technical documentation PRCA0EAC00.
TECHNICAL CHARACTERISTICS
Operational temperature -25°C / +70°C
Rated operational current 10 A
Rated operational voltage 400 Vac
Markings CE
DESCRIPTION
Slip ring collectors are sets of rings couplet with brushes designed to allow current to pass from a fixed to a rotating part.
The 10A series is used mainly on small jib cranes and it has only 4 rings.
These units are suitable only for transmitting currents with 50/60Hz supply frequency
More Info
Price
30A Slip ring collector
30A Slip ring collector
SPECIFICATIONS
Brass rings.
Rotor unit rotating on ball bearing.
Further information available on the technical documentation PRCA0EAE00.
TECHNICAL CHARACTERISTICS
Operationsl temperature -25°C / +70°C
Degree of protection IP 22
Insulation category Class I
Rated operational current 10 A / 30A
Rated operational voltage 400 Vac
Markings CE
More Info
Price

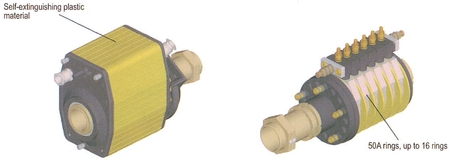

50A Slip ring collector
50A Slip ring collector
SPECIFICATIONS
Brass rings.
Rotor unit rotating on ball bearing.
Available with self-extinguishing thermoplastic protection or without protection and support plates (only rings and brushes).
Further information available on the technical documentation PRCA0EAG00.
TECHNICAL CHARACTERISTICS
Operational temperature -25°C / +70°C
Degree of protection IP 40
Insulation category Class I
Rated operational current 50A
Rated operational voltage 400 Vac
Markings CE
More Info
Price
