Instantaneous relays

Model 1210

2 contacts

Instantaneous relays 2 contacts / 1210

1210 rear wiring socket to be soldered 9210-30 rear wiring socket to be soldered 9210-20 front wiring socket / screw terminals 9215-30 front wiring socket /screw terminals 9215-20

	DESCRIPTION

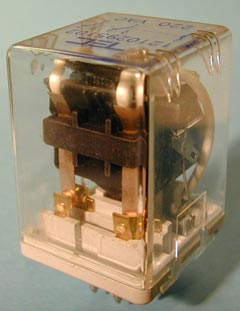

	Instantaneous relay 2 or 3 CO contacts. Pluggable on front wiring socket (9215) or rear wiring socket (9210) - 8 or 11 pins Detailed table with coil resistance data is available in the technical support pages of this site or can be sent upon request.

	Dimensions		Connection

	TECHNICAL FEATURES
	Function	Instantaneous
	Presentation	under cover
	Connection	on front or rear wiring sockets
	Number of mechanical operations	10.000.000
	Operating temperature	- 10 to + 55°C
	Storage temperature	- 40°C to + 80°C
	Climatic protection	reinforced climatic protection
	Shock voltage	50 g - 11 ms
	Dielectric strength	2 KV-50 Hz-1 min at 40°C and 70% HR
	Insulation resistance	> 200 MOhms
	Weight	94 g.

	COIL DATA
		Direct current	Alternative current
	Min. nominal voltage DC	6 V	6 V - 50 or 60 Hz
	Min. nominal voltage AC	220 V	400 V - 50 or 60 Hz
	Operating range	-20/+10% of nominal voltage
	Power requirement	2 RT : 0,25 W - 3 RT : 0,5 to 2,2W	3 to 4,5 VA	1,6 to 3 VA

	CONTACTS
	Number of contacts	2 or 3 RT
	Contacts material	silver alloy with gold flash
	Max. load current	8 A per RT
	Low power switching	150 mA with min voltage 5 V and/or I min 40 mA
	Short-circuit load	250 A / 30 ms
	Response time	DC < 13 ms - AC < 20 ms

	CONTACTS RATING
	DIRECT CURRENT
	resistive load   inductive load - cos phi = 0,7
	ALTERNATIVE CURRENT
	resistive load   inductive load cos phi = 0.7

	VERSIONS
	Wide range of coil consumptions : from 0,25 to 2,2 W in DC current and from 1,6 to 3 VA in AC current. Please contact us.
