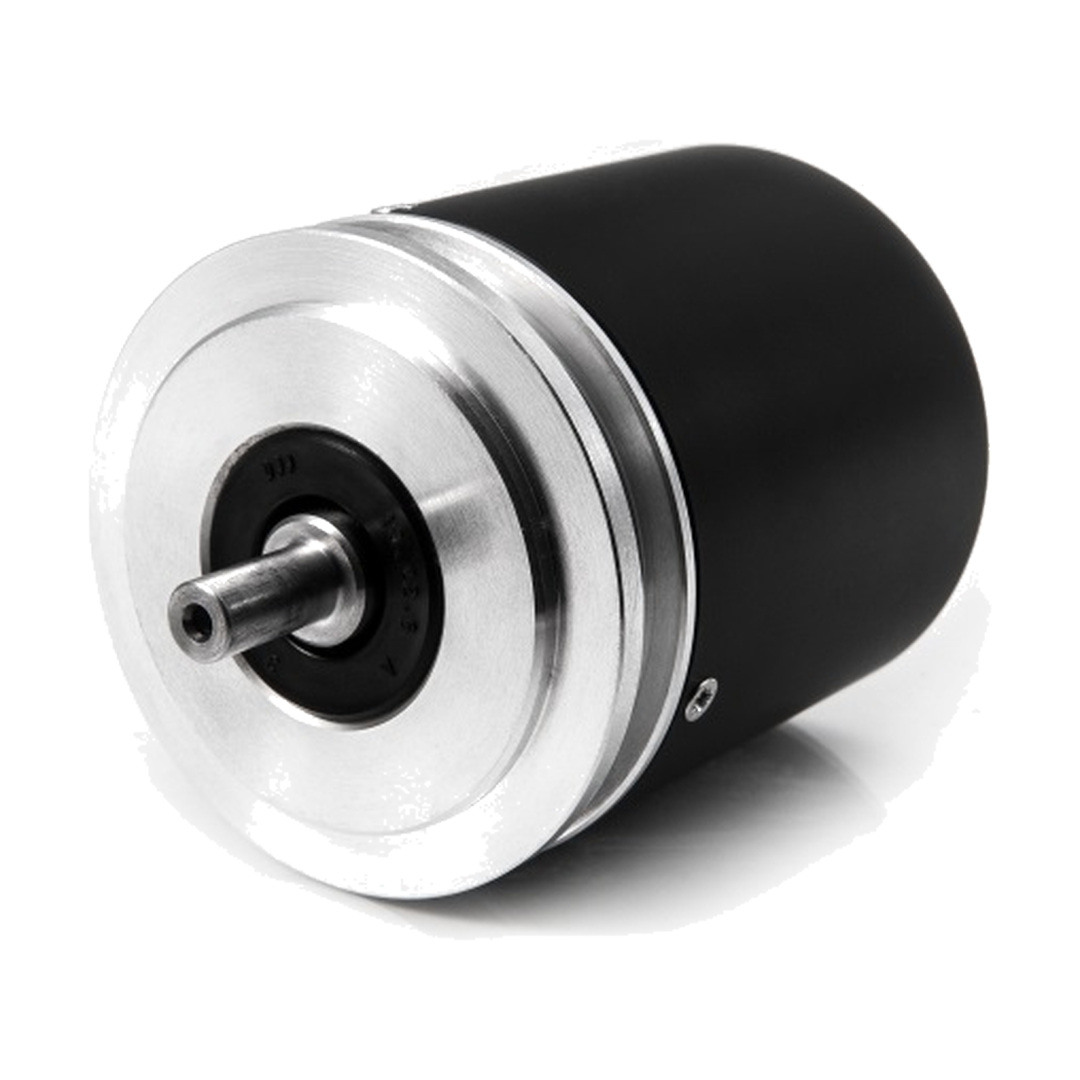

Absolute Single Turn Rotary Encoder Model AK50

Precizika Metrology Photoelectric Rotary Encoders Model AK50 Absolute single turn rotary encoder AK50 is designed to be used in rotary tool changers, it features 8 bit gray or binary code outputs with arbitrary zero position, direction and resolution selection (set via switches), diagnostic facilities (status LED). Encoder has the following features: Ability to set arbitrary reference position (accessible viaswitch). User selectable number of indexed positions accessible via switch (example: when used in a tool turret with different number of tools) with maximum of 256. Following diagnostic facilities are provided via two bicolour LEDs: 1. Power supply failure 2. Internal failure (illumination failure
