Excel|mate Plus Connectors

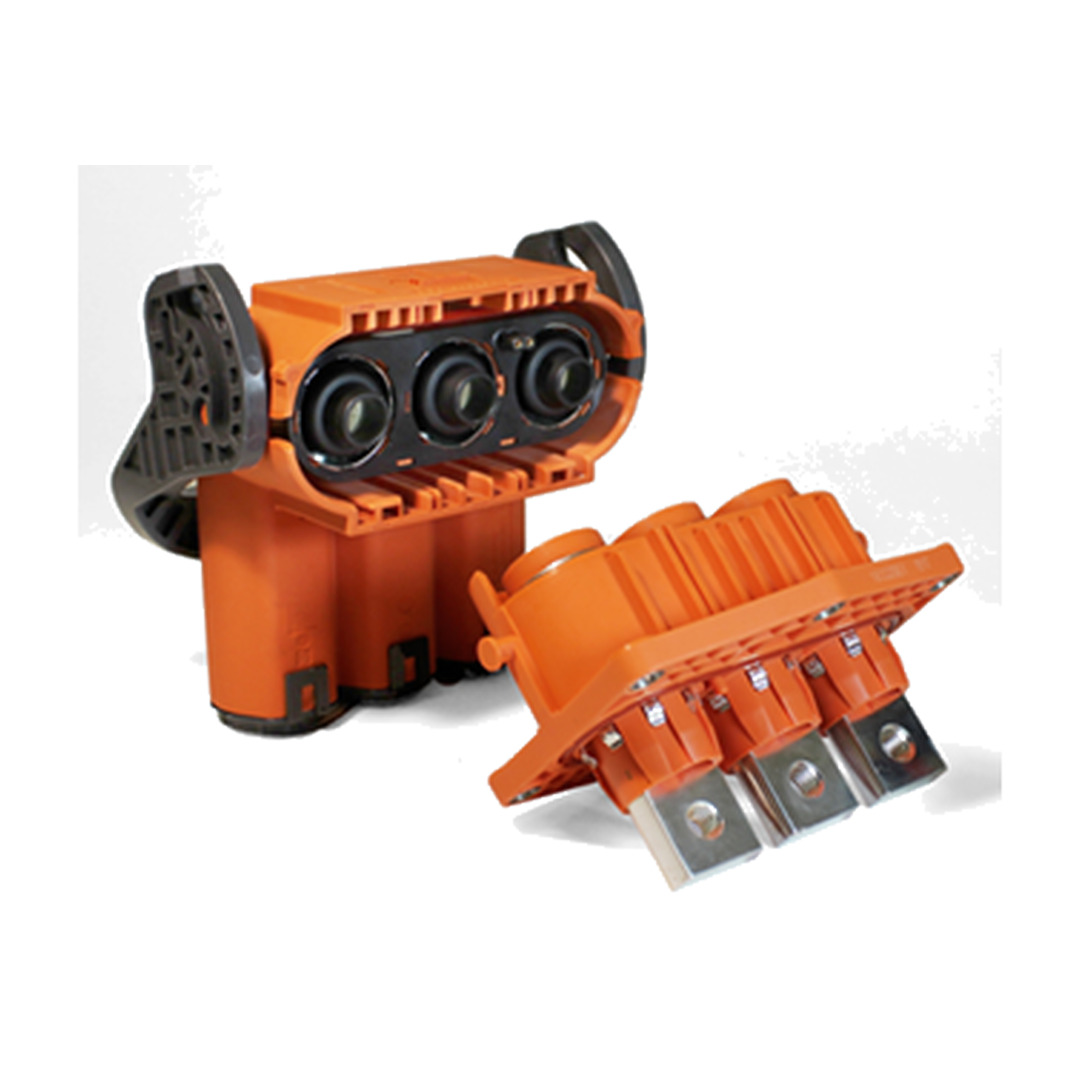

Excel|mate Plus Connectors When high performance and increased safety are required in electric vehicles, Excel|mate is your product line of choice. The Excel|mate Plus series is divided in two power alternatives. The 2 pole HVSL1200 is the most powerful and newest solution out of the Excel|mate Plus series. Equipped with 12 mm Radsok contacts and wire ranges up to 95mm² it can reach currents up to 350 A. If the HVSL1200 is over-specified for your application we can offer you the HVSL1000 for up to 250 A and wire gauges from 25-70mm². Both types are rated to 1.000V and are waterproof according to IP67/ IP69K. High voltage interlock contacts in combination with a double secured locking system provide maximum safety for users. The product is compliant with LV215. Amphenol Excel|mate Plus Connectors ( Female cable connector ) HVSL1000061A035 10MM HVSL1000 single way straight plug; A-coded; 35,00mm² HVSL1000061A050 HVSL1000061A050 10MM HVSL1000 single way straight plug with HVIL; A-coded; 50,00mm² HVSL1000061A070 HVSL1000061A070 10MM HVSL1000 single way straight plug with HVIL; A-coded; 70,00mm² HVSL1000061A135 HVSL1000061A135 10MM HVSL1000 single way straight plug With HVIL; A-coded; 35,00mm² HVSL1000061A150 HVSL1000061A150 10MM HVSL1000 single way straight plug with HVIL; A-coded; 50,00mm² HVSL1000061A170 HVSL1000061A170 10MM HVSL1000 single way straight plug with HVIL; A-coded; 70,00mm² HVSL1000061B035 HVSL1000061B035 10MM HVSL1000 single way straight plug with HVIL; B-coded; 35
