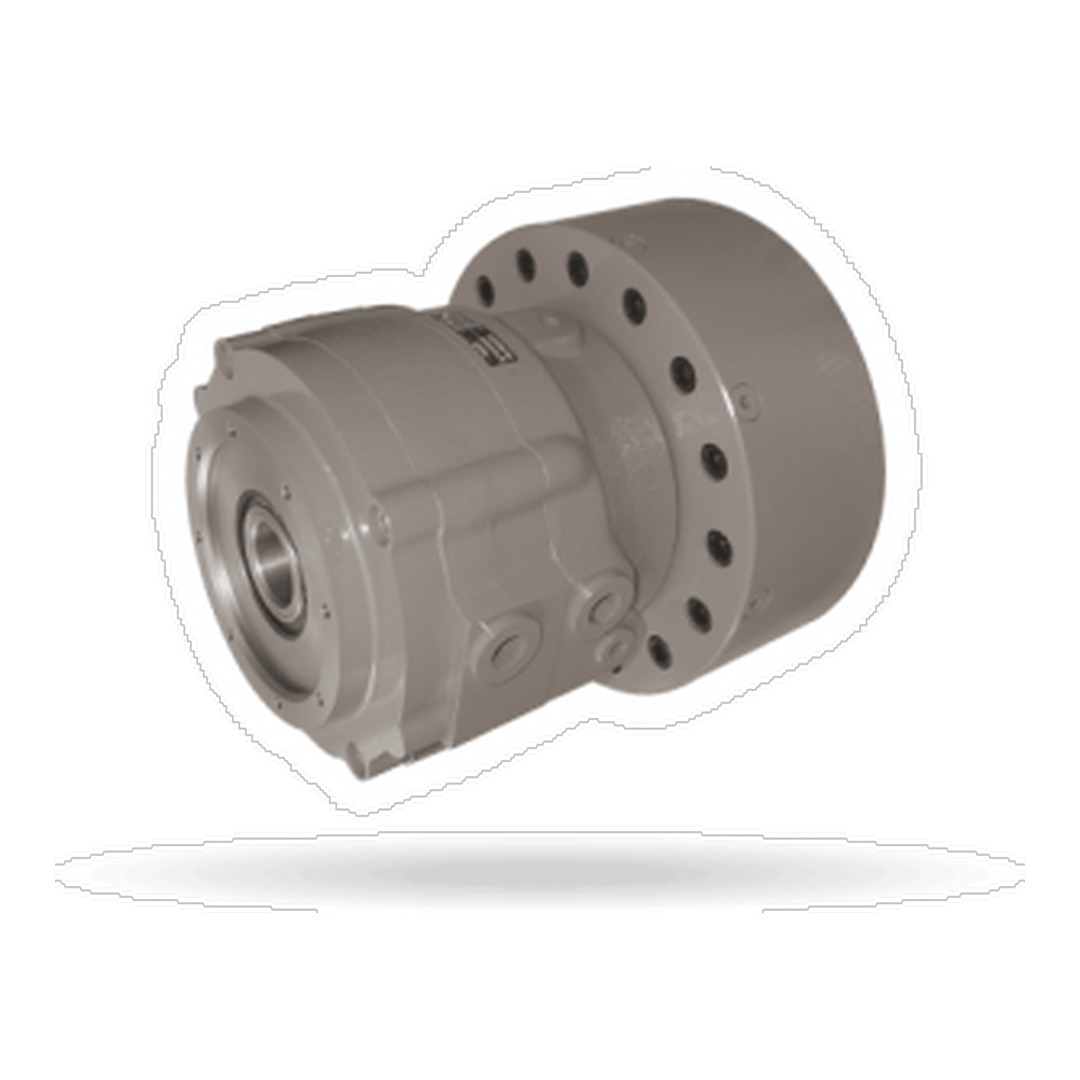

ROTOSTAT N – Rotary Union With Contactless Axial Gap Seal

ROTARY UNION ROTOSTAT N – Rotary Union with contactless axial gap seal Your benefits A service life second to none ROTOSTAT N uses a contactless hydrostatic gap seal. The inverse design ensures that the gap remains constant within few µm even at pressures up to 250 bar. This keeps friction loss to the minimum. Ultimate durability and reliability ROTOSTAT N rotary unions have been designed for extreme durability. It is especially suited for use under rough conditions such as coiler tensioning in rolling mills, centrifuges or for propeller pitch adjustment in ships. Exceptional emergency-running properties ROTOSTAT N unions are available in two variants: as complete rotary unions with up to 8 passages, and as cartridge element for installation in existing structures. The cartridge variant ensures superior emergency-running properties and quick availability in case of repair. Technical data Media Oil, emulsion Max. number of channels 4 Max. pressure [bar] 250 Max. speed [rpm] 15,000 ROTOSTAT N Cartridge Shaft diameters 30, 80, 140 and 200 mm for oil and water-based liquids ROTOSTAT N Multi-channel variant Available with up to 4 passages as complete rotary union for oil and water-based liquids ,GAT- Gesellschaft für Antriebstechnik
