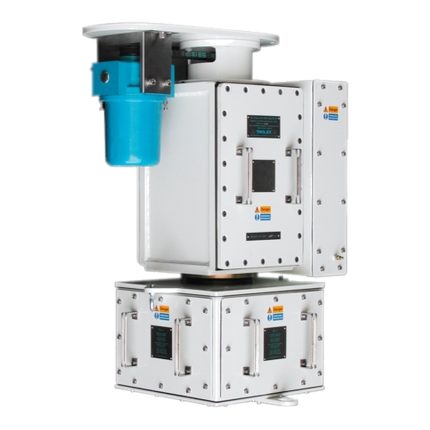

Slip Ring Collector 30A

SPECIFICATIONS Brass rings. Rotor unit rotating on ball bearing. Further information available on the technical documentation PRCA0EAE00. TECHNICAL CHARACTERISTICS Operationsl temperature -25°C / +70°C Degree of protection IP 22 Insulation category Class I Rated operational current 10 A / 30A Rated operational voltage 400 Vac Markings CE Standard Codes No.10A No.30A Code rings rings 1 4 PF2305B001 2 4 PF2306B003 3 4 PF2307B002 4 4 PF2308B001 5 4 PF2309B001 6 4 PF2310B001 7 4 PF2311B001 8 4 PF2312B001 9 4 PF2313B002 10 4 PF2314B001 11 4 PF2315B002 12 4 PF2316B001 Max. No. of rings: 4 No.30A Code rings 3 PF2303B001 4 PF2304B001 5 PF2305B002 6 PF2306B002 7 PF2307B001 8 PF2308B003 9 PF2309B002 10 PF2310B003 11 PF2311B002 12 PF2312B002 13 PF2313B003 14 PF2314B003 15 PF2315B005 16 PF2316B004 Max. No. of rings: 20 ,30A Slip ring collector specıfıcatıons brass rings. rotor unit rotating on ball bearing. further information available on the…,,54,1,0,30a-slip-ring-collector,2014-12-04 01:10:00
