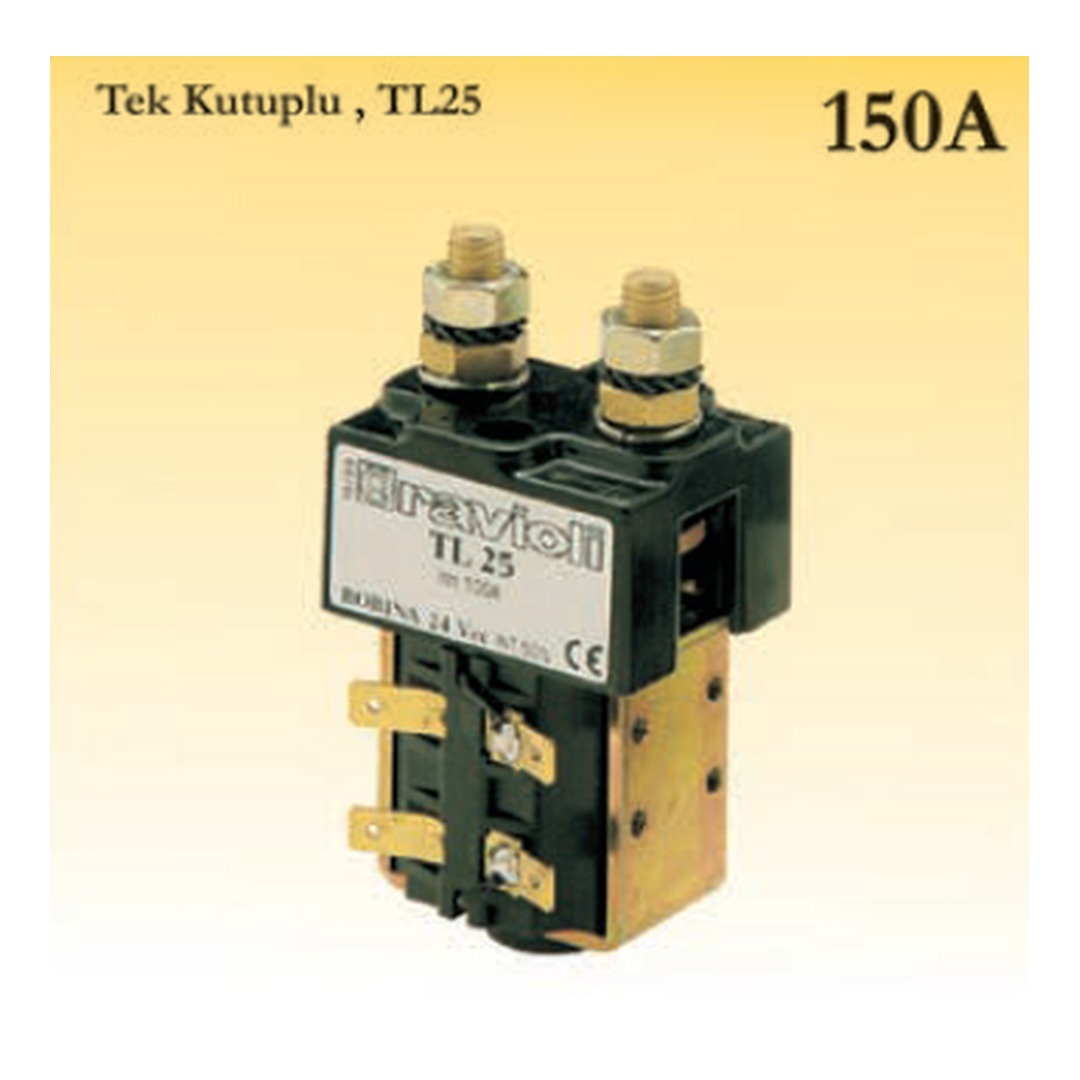

TL 25 Type DC Contactor

LOGO Serisi – TL25 The range of LOGO series type TL25 contactors, which are both compact in size and powerful, has been designed in accordance with the safety requirements as set out in the EUROPEAN DIRECTIVE CEE 89/392 as well as with Norms CEI EN 60947-4-1 and EN 1175-1. The products included in the range are suitable for the traction and material handling sectors using direct current and can be applied to lift trucks, industrial cleaning machines, various services on board ships and boats as well as to road and rail transport vehicles. Coils The d.c.coils feature terminals with 6mm double connections. Standard duty is in intermittent mode (50%). Maximum working time is 15 mins (temporary duty). Normalised voltages: 12 – 24 – 36 – 48 – 72 – 80 – 96V. The following are available: reduced consumption coils for continuous duty-option P. Main contacts These contactors have double breaking contacts, in Ag special alloy, resistant to arc and suitable for heavy duty. The contacts are also available as spare parts. Option V – dust protection Closed contact housings can be applied to protect the contactor from oil splashes and dust. This option cannot be used on contactor types with magnets ,1,100,1,ravioli-tl25-type-dc-contactor,,2015-04-10 15:22:00,ravioli-tl25-type-dc-contactor,95,0,,0,As we Ravioli’s Turkey distributorship, we sell TL 25 Tip DC Kontaktör product group ;which order codes included E TL25, E TL22, E TL222,E TLST-2, E TLST-4., Logo series single pole contactors type TL25 are available in the following versions: – 50% intermittent duty – application of magnetic blowouts (option M) – application of dust protection (option V) , Raviolispa TL25 DC Contactor Technical Specifications Contactor TL 25 TL 25M Nominal operating current at at %50 intermittent, 300op/h Ie 150A 150A Thermal current rating Ith 100A 100A Nominal voltage Ue 24V 48V Breaking capacity with 15 ms time constant 675A 675A Category of usage DC5 DC5 Working voltage limits 0,7-1,1Vn 0,7-1,1Vn Coil power dissipation 20W 20W Manoeuvre time pull-in time drop-out time Max clamps torque 60 kgcm 60 kgcm Mechanical life 3 Million 3 Million Contact material AgCdO AgCdO Main contacts 2NC 2NC ,As we Ravioli’s Turkey distributorship, we sell TL 25 Tip DC Kontaktör product group ;which order codes included E TL25, E TL22, E TL222,E TLST-2, E TLST-4.,tl-25-type-dc-contactor-3146-ravioli-dc-contactors-logo-series-logo-nbsp-serisi-tl25-the-range-of-logo-series-type-tl25-contactors-which-are-both-compact-in-size-and-powerful-has-been-designed-in-accordance-with-the-safety-requirements-as-set-out-in-the-european-directive-cee-89-392-as-well-as-with-norms-cei-en-60947-4-1-and-en-1175-1-the-products-included-in-the-range-are-suitable-for-the-traction-and-material-handling-sectors-using-direct-current-and-can-be-applied-to-lift-trucks-industrial-cleaning-machines-various-services-on-board-ships-and-boats-as-well-as-to-road-and-rail-transport-vehicles-coils-the-d-c-coils-feature-terminals-with-6mm-double-connections-standard-duty-is-in-intermittent-mode-50-maximum-working-time-is-15-mins-temporary-duty-normalised-voltages-12-24-36-48-72-80-96v-nbsp-the-following-are-available-reduced-consumption-coils-for-continuous-duty-option-p-main-contacts-these-contactors-have-double-breaking-contacts-in-ag-special-nbsp-alloy-resistant-to-arc-and-suitable-for-heavy-duty-the-contacts-are-also-available-as-spare-parts-option-v-dust-protection-closed-contact-housings-can-be-applied-to-protect-the-contactor-nbsp-from-oil-splashes-and-dust-this-option-cannot-be-used-on-contactor-types-with-magnets-p-strong-style-line-height-20-8px-raviolispa-tl25-dc-contactor-nbsp-technical-specifications-strong-p- -table-border-1-cellpadding-0-cellspacing-0-style-width-546px-width-546- -tbody- -tr- -td-colspan-3-style-width-395px-height-30px- -p-contactor-p- -td- -td-style-width-76px-height-30px- -p-tl-25-p- -td- -td-style-width-76px-height-30px- -p-tl-25m-p- -td- -tr- -tr- -td-colspan-2-style-width-338px- -p-nominal-operating-current-at-at-50-intermittent-300op-h-p- -td- -td-style-width-57px- -p-ie-p- -td- -td-style-width-76px- -p-150a-p- -td- -td-style-width-76px- -p-150a-p- -td- -tr- -tr- -td-colspan-2-style-width-338px- -p-thermal-current-rating-p- -td- -td-style-width-57px- -p-ith-p- -td- -td-style-width-76px- -p-100a-p- -td- -td-style-width-76px- -p-100a-p- -td- -tr- -tr- -td-colspan-2-style-width-338px- -p-nominal-voltage-p- -td- -td-style-width-57px- -p-ue-p- -td- -td-style-width-76px- -p-24v-p- -td- -td-style-width-76px- -p-48v-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-breaking-capacity-with-15-ms-time-constant-p- -td- -td-style-width-76px- -p-675a-p- -td- -td-style-width-76px- -p-675a-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-category-of-usage-nbsp-p- -td- -td-style-width-76px- -p-dc5-p- -td- -td-style-width-76px- -p-dc5-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-working-voltage-limits-nbsp-p- -td- -td-style-width-76px- -p-0-7-1-1vn-p- -td- -td-style-width-76px- -p-0-7-1-1vn-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-coil-power-dissipation-p- -td- -td-style-width-76px- -p-20w-p- -td- -td-style-width-76px- -p-20w-p- -td- -tr- -tr- -td-rowspan-2-style-width-197px- -p-manoeuvre-time-nbsp-p- -td- -td-colspan-2-style-width-197px- -p-pull-in-time-p- -td- -td-style-width-76px- -p-lt-20ms-p- -td- -td-style-width-76px- -p-lt-20ms-p- -td- -tr- -tr- -td-colspan-2-style-width-197px- -p-drop-out-time-p- -td- -td-style-width-76px- -p-lt-10ms-p- -td- -td-style-width-76px- -p-lt-10ms-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-max-clamps-torque-nbsp-p- -td- -td-style-width-76px- -p-60-kgcm-p- -td- -td-style-width-76px- -p-60-kgcm-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-mechanical-life-nbsp-p- -td- -td-style-width-76px- -p-3-million-p- -td- -td-style-width-76px- -p-3-span-style-line-height-20-7999992370605px-million-span-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-contact-material-p- -td- -td-style-width-76px- -p-agcdo-p- -td- -td-style-width-76px- -p-agcdo-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-main-contacts-nbsp-p- -td- -td-style-width-76px- -p-2nc-p- -td- -td-style-width-76px- -p-2nc-p- -td- -tr- -tbody- -table- -as-we-ravioli-s-turkey-distributorship-we-sell-tl-25-tip-dc-kontaktor-product-group-which-order-codes-included-e-tl25-e-tl22-e-tl222-e-tlst-2-e-tlst-4,3101,0,Ravioli TL 25 Type DC Contactor
