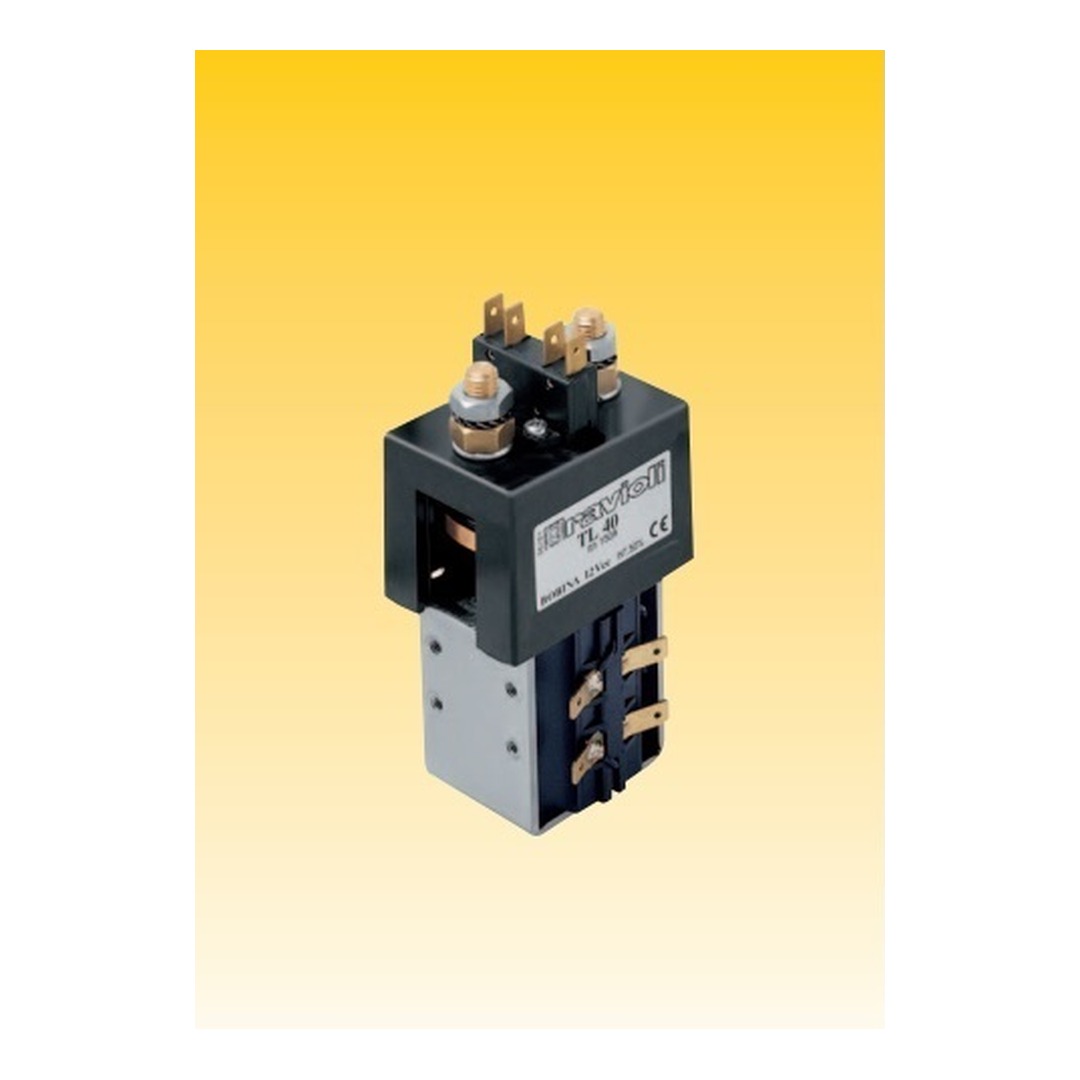

TL 40 Type DC Contactor

Main features of the range The new range of LOGO series type TL40 contactors, which are very powerful, has been designed in accordance with the safety requirements as set out in the EUROPEAN DIRECTIVE 2006/42/CE as well as with Norms CEI EN 60947-4-1 and EN 1175-1. The products included in the range are suitable for the traction and material handling sectors using direct current and can be applied to lift trucks, industrial cleaning machines, various services on board ships and boats as well as to road and rail transport vehicles Coils The d.c.coils feature terminals with 6mm double connections. Standard duty is in intermittent mode (50%). Maximum working time is 15 mins (temporary duty). Normalised voltages: 12 – 24 – 36 – 48 – 72 – 80 – 96V. The following are available: reduced consumption coils for continuous duty-option P. Main contacts These contactors have double breaking contacts, in Ag special alloy, resistant to arc and suitable for heavy duty. The contacts are also available as spare parts. Further options Option M – magnetic blowouts TL40M contactors featuring permanent magnets are recommended for voltages ≥48V dc. In this case the polarities indicated on the cover must be respected. Option V – dust protection Closed contact housings can be applied to protect the contactor from oil splashes and dust. This option can not be used on contactor types with permanent magnets. Option A – auxiliary contacts A microswitch of 1NO+1NC auxiliary contacts can be supplied mounted on the TL40 types of contactors. Operating current (resistive load) 5A-24Vcc Recommended working positions: either horizontal or vertical with poles pointing upwards ,1,100,1,ravioli-tl40-type-dc-contactor,,2015-04-10 16:18:00,ravioli-tl40-type-dc-contactor,95,0,,0,Imaj Teknik as we are Turkey distributor of Ravioli SPA , we sell TL 40 Type DC Contactor products with order codes; TL 40M, TL 40P, E TL40, E TL22, E TL222,E TLST-2, E TLST-4., Single Pole Contactors Type TL40 LOGO series single pole contactors type TL40 are available in the following versions: – 50% intermittent duty – 100% duty (option P) – application of magnetic blowouts (option M) – application of dust protection (option V) – application of auxiliary contacts (option A) Types and Codes Type Code TL40 50% int. duty E TL40 TL40 50% int. duty and magnets E TL40M TL40 100% duty E TL40P TL40 100% duty and magnets E TL40MP The suffix A is to be added to these codes when the mounted auxiliary contact is required. , Raviolispa TL40 DC Contactor Technical Specifications Contactor TL 40 TL 40M TL 40P Nominal operating current at 50% intermitten, 300op/h Ie 220A 220A 220A Thermal current rating Ith 150A 150A 150A Nominal voltage Ue 24V 48V 24V Breaking capacity with 15 ms time constant 1000A 1000A 1000A Category of usage DC5 DC5 DC5 Working voltage limits 0,7-1,1Vn 0,7-1,1Vn 0,8-1,1Vn Coil power dissipation 35W 35W 35W Manoeuvre time pull-in time drop-out time Max clamps torque 60 Kgcm 60 Kgcm 60 Kgcm Mechanical life 3 Million 3 Million 3 Million Contact material AgCdO AgCdO AgCdO Main contacts 1NO 1NO 1NO ,Imaj Teknik as we are Turkey distributor of Ravioli SPA , we sell TL 40 Type DC Contactor products with order codes; TL 40M, TL 40P, E TL40, E TL22, E TL222,E TLST-2, E TLST-4.,tl-40-type-dc-contactor-3146-ravioli-dc-contactors-logo-series-main-features-of-the-range-the-new-range-of-logo-series-type-tl40-contactors-which-are-nbsp-very-powerful-has-been-designed-in-accordance-with-the-safety-nbsp-requirements-as-set-out-in-the-european-directive-nbsp-2006-42-ce-as-well-as-with-norms-cei-en-60947-4-1-and-nbsp-en-1175-1-the-products-included-in-the-range-are-suitable-for-the-traction-nbsp-and-material-handling-sectors-using-direct-current-and-can-be-nbsp-applied-to-lift-trucks-industrial-cleaning-machines-various-nbsp-services-on-board-ships-and-boats-as-well-as-to-road-and-rail-nbsp-transport-vehicles-coils-the-d-c-coils-feature-terminals-with-6mm-double-connections-standard-duty-is-in-intermittent-mode-50-maximum-working-nbsp-time-is-15-mins-temporary-duty-normalised-voltages-12-24-36-48-72-80-96v-the-following-are-available-reduced-consumption-coils-for-nbsp-continuous-duty-option-p-main-contacts-these-contactors-have-double-breaking-contacts-in-ag-special-nbsp-alloy-resistant-to-arc-and-suitable-for-heavy-duty-the-contacts-are-also-available-as-spare-parts-nbsp-further-options-nbsp-option-m-magnetic-blowouts-nbsp-tl40m-contactors-featuring-permanent-magnets-are-recommended-for-voltages-ge-48v-dc-nbsp-in-this-case-the-polarities-indicated-on-the-cover-must-be-respected-nbsp-option-v-dust-protection-closed-contact-housings-can-be-applied-to-protect-the-contactor-nbsp-from-oil-splashes-and-dust-this-option-can-not-be-used-on-contactor-types-with-permanent-nbsp-magnets-option-a-auxiliary-contacts-a-microswitch-of-1no-1nc-auxiliary-contacts-can-be-supplied-nbsp-mounted-on-the-tl40-types-of-contactors-operating-current-resistive-load-5a-24vcc-recommended-working-positions-either-horizontal-or-vertical-with-poles-pointing-upwards-p-strong-style-line-height-20-8px-raviolispa-tl40-dc-contactor-nbsp-technical-specifications-strong-p- -table-border-1-cellpadding-0-cellspacing-0-style-width-631px-width-631- -tbody- -tr- -td-colspan-3-style-width-395px-height-30px- -p-contactor-p- -td- -td-style-width-76px-height-30px- -p-tl-40-p- -td- -td-style-width-76px-height-30px- -p-tl-40m-p- -td- -td-style-width-85px-height-30px- -p-tl-40p-p- -td- -tr- -tr- -td-colspan-2-style-width-338px- -p-nominal-operating-current-at-nbsp-50-intermitten-300op-h-p- -td- -td-style-width-57px- -p-ie-p- -td- -td-style-width-76px- -p-220a-p- -td- -td-style-width-76px- -p-220a-p- -td- -td-style-width-85px- -p-220a-p- -td- -tr- -tr- -td-colspan-2-style-width-338px- -p-thermal-current-rating-p- -td- -td-style-width-57px- -p-ith-p- -td- -td-style-width-76px- -p-150a-p- -td- -td-style-width-76px- -p-150a-p- -td- -td-style-width-85px- -p-150a-p- -td- -tr- -tr- -td-colspan-2-style-width-338px- -p-nominal-voltage-p- -td- -td-style-width-57px- -p-ue-p- -td- -td-style-width-76px- -p-24v-p- -td- -td-style-width-76px- -p-48v-p- -td- -td-style-width-85px- -p-24v-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-breaking-capacity-with-15-ms-time-constant-p- -td- -td-style-width-76px- -p-1000a-p- -td- -td-style-width-76px- -p-1000a-p- -td- -td-style-width-85px- -p-1000a-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-category-of-usage-p- -td- -td-style-width-76px- -p-dc5-p- -td- -td-style-width-76px- -p-dc5-p- -td- -td-style-width-85px- -p-dc5-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-working-voltage-limits-nbsp-p- -td- -td-style-width-76px- -p-0-7-1-1vn-p- -td- -td-style-width-76px- -p-0-7-1-1vn-p- -td- -td-style-width-85px- -p-0-8-1-1vn-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-coil-power-dissipation-p- -td- -td-style-width-76px- -p-35w-p- -td- -td-style-width-76px- -p-35w-p- -td- -td-style-width-85px- -p-35w-p- -td- -tr- -tr- -td-rowspan-2-style-width-197px- -p-manoeuvre-time-nbsp-p- -td- -td-colspan-2-style-width-197px- -p-pull-in-time-p- -td- -td-style-width-76px- -p-lt-30ms-p- -td- -td-style-width-76px- -p-lt-30ms-p- -td- -td-style-width-85px- -p-lt-30ms-p- -td- -tr- -tr- -td-colspan-2-style-width-197px- -p-drop-out-time-p- -td- -td-style-width-76px- -p-lt-10ms-p- -td- -td-style-width-76px- -p-lt-10ms-p- -td- -td-style-width-85px- -p-lt-10ms-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-max-clamps-torque-p- -td- -td-style-width-76px- -p-60-kgcm-p- -td- -td-style-width-76px- -p-60-kgcm-p- -td- -td-style-width-85px- -p-60-kgcm-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-mechanical-life-p- -td- -td-style-width-76px- -p-3-million-p- -td- -td-style-width-76px- -p-3-span-style-line-height-20-7999992370605px-million-span-p- -td- -td-style-width-85px- -p-3-span-style-line-height-20-7999992370605px-million-span-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-contact-material-p- -td- -td-style-width-76px- -p-agcdo-p- -td- -td-style-width-76px- -p-agcdo-p- -td- -td-style-width-85px- -p-agcdo-p- -td- -tr- -tr- -td-colspan-3-style-width-395px- -p-main-contacts-nbsp-p- -td- -td-style-width-76px- -p-1no-p- -td- -td-style-width-76px- -p-1no-p- -td- -td-style-width-85px- -p-1no-p- -td- -tr- -tbody- -table- -imaj-teknik-as-we-are-turkey-distributor-of-ravioli-spa-we-sell-tl-40-type-dc-contactor-products-with-order-codes-tl-40m-tl-40p-e-tl40-e-tl22-e-tl222-e-tlst-2-e-tlst-4,4381,0,Ravioli TL 40 Type DC Contactor
