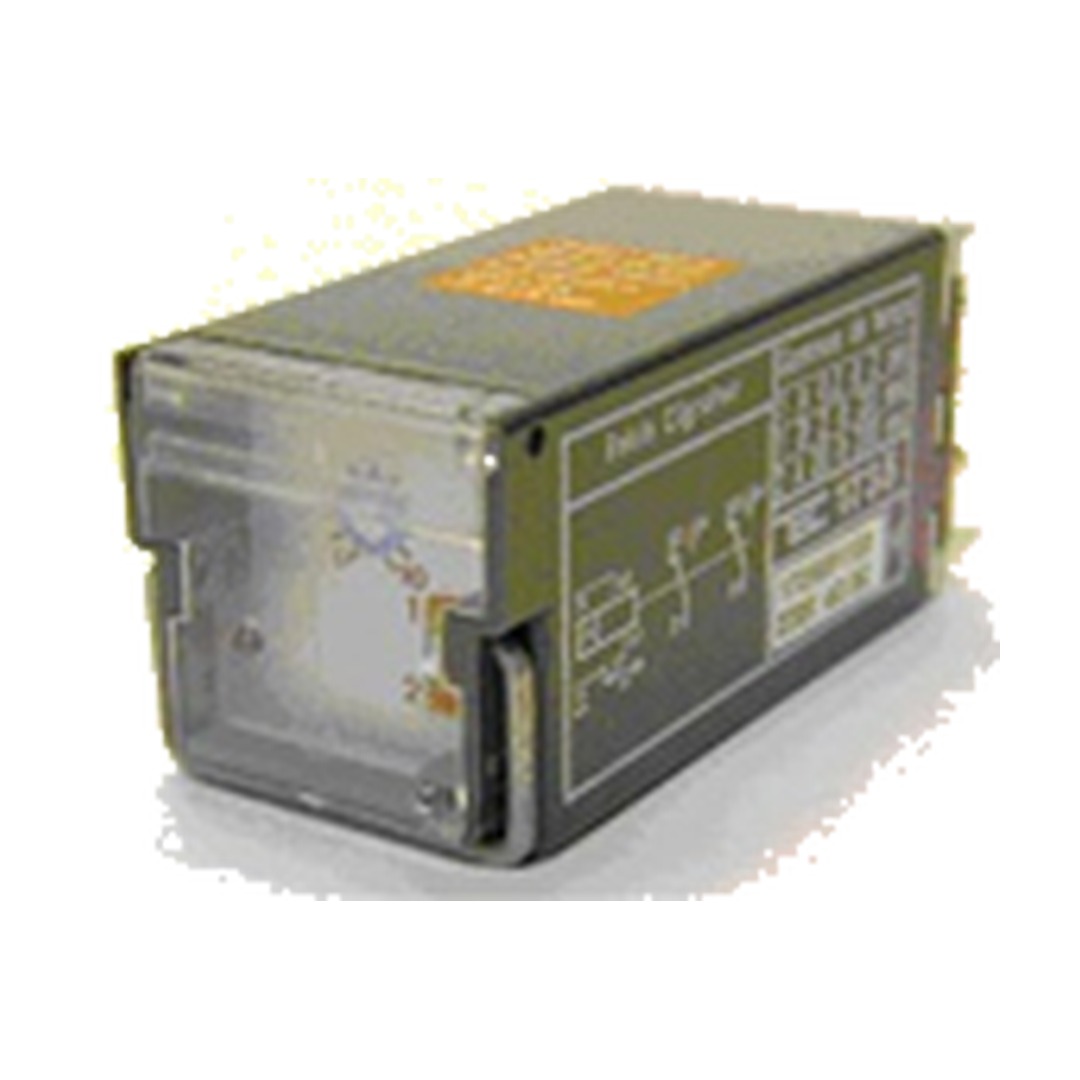

Flashing relays Model 1735 2 Kontak 1735 rear wiring socket with clips 9723 front wiring socket / screw terminals 9705 DESCRIPTION Multirange flashing relay – 2 CO contacts – 5 A. Pluggable on front wiring socket (9705) or rear wiring socket (9723) Detailed table of the coil resistance data is available in the technical support pages of this site or can be sent upon request. Dimensions Connection OPERATION PRINCIPLE Timing range selector on front face : 1-A : 0,2 to 2 s 1-B : 2 to 20 s 2-A : 20 to 200 s Timing adjustable by potentiometer. Visualisation of the output state by LED. TECHNICAL FEATURES Function flashing Presentation under cover Connection on front or rear wiring socket Number of mechanical operations > 30.000.000 Operating temperature – 25 to + 55°C Storage temperature – 40°C to + 80°C Climatic protection reinforced climatic protection Shock voltage 50 g – 11 ms Dielectric strength 2,5 KV – 50 Hz Insulation resistance > 1.000 MOhms (500 VDC) Weight 130 g. COIL DATA Direct current Alternative current Min. nominal voltage DC 12 V 220 V Min. nominal voltage AC 127 V 220 V Operating range -20/+10% of nominal voltage Power requirement max 4 VA CONTACTS Number of contacts 2 Contacts material silver alloy with gold flash Max. load current 5 A per contact Low power switching 100 VA with min. voltage 1 V or I Min 1 mA Short-circuit load 100 A / 30 ms Response time DC Bounce time 100 ms OPERATION DIAGRAM FUNCTIONS ,TEC AUTOMATISMES ,Flashing relay2 contac Model 1735,#730##1908#,52,1
