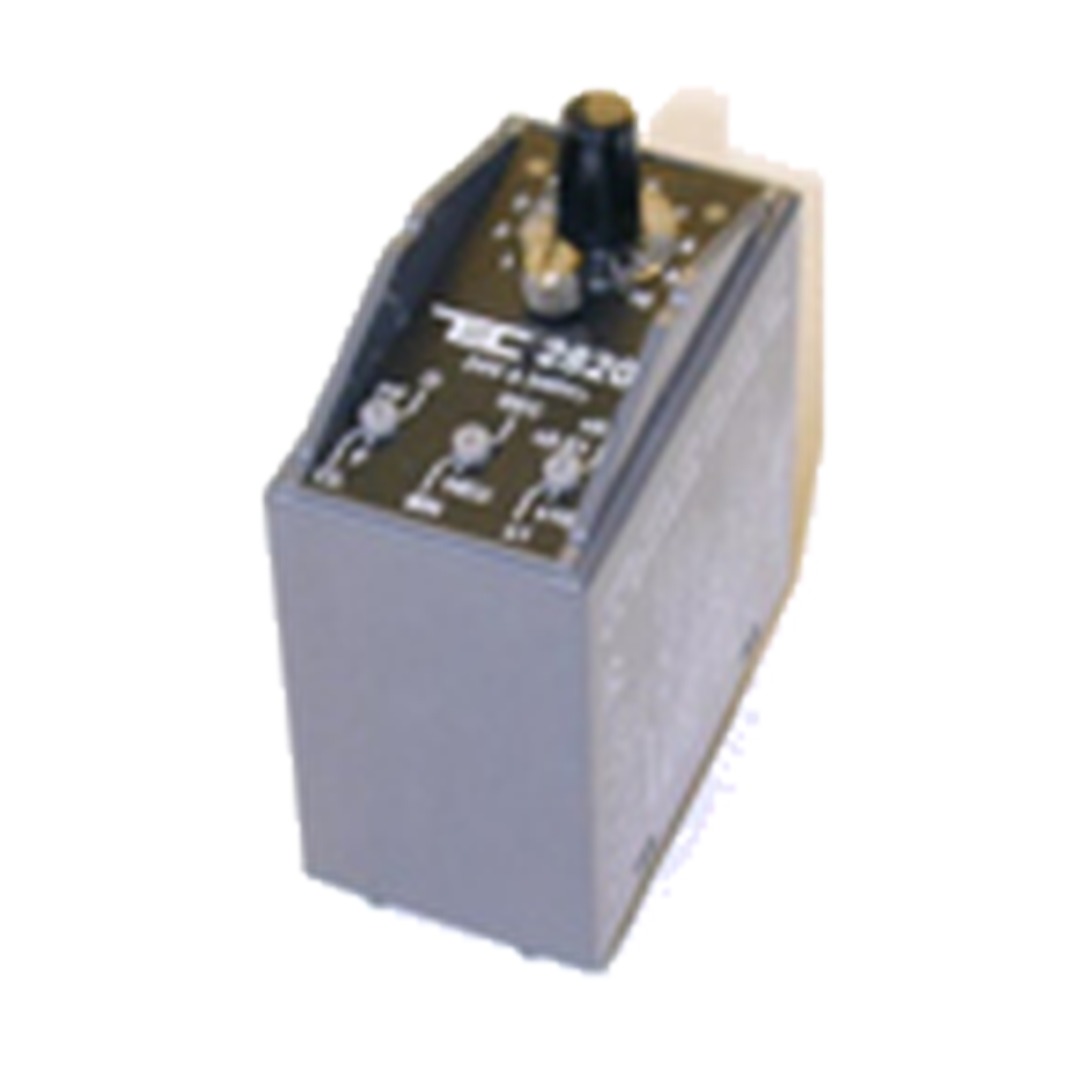

Flashing relays Model 2820 2 Kontak 2820 rear wiring socket with clips 9246 rear wiring socket / PCB mounting 9244 front wiring socket with clips 9946-20 front wiring socket / screw terminals 9946-10 DESCRIPTION Universal timer relay – 2 contacts. Pluggable on the following sockets : 9946, 9244, 9246. Dimensions Connection OPERATION PRINCIPLE Timing ranges : * sec : 0.01-0.1 / 0.1-1 / 1-10 / 10-100 * min : 0.01-0.1 / 0.1-1 / 1-10 / 10-100 * h : 0.01-0.1 / 0.1-1 / 1-10 / 10-100 Visualisation by red state LED and green voltage presence LED. See the operation diagram hereafter . !! any modification of the choice of the form or of the multiplier of a timing in use will be validated only after a power supply break !! PLAN TECHNICAL FEATURES Function timer (F, O, CL, PF) Presentation under cover Connection pluggable on front or rear wiring socket Number of mechanical operations 10.000.000 Operating temperature – 20 to + 60°C Storage temperature – 25°C to + 70°C Climatic protection reinforced climatic protection Weight 150 g. Protection level IP40 Operate time reset time after timing : 10 ms Release time reset time after voltage break : 30 ms COIL DATA Direct current Alternative current Min. nominal voltage DC 24 V 24 V Min. nominal voltage AC 240 V 240 V – 50 or 60 Hz CONTACTS Number of contacts 2 Max. load current 10 ,Model 2820 flashing relays model 2820 2 kontak 2820 rear wiring socket with clips 9246…,#730##1908#
